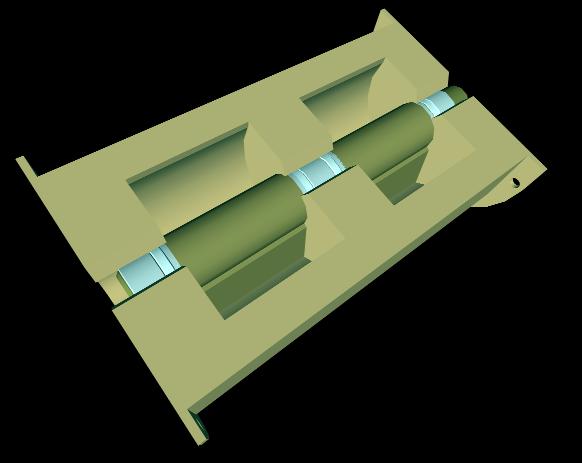

View of the Engine barrel. Engine barrel fitted with two flaps and oscillating shaft

Click here to return

The cross section of the housing constitute a semicircular segment having cylindrical profile. Inside the housing a flap can oscillate about the axis of the shaft which is fitted to the flap. The flap is movable slidably with respect to walls of the housing, thereby defining two working chambers in centrally divided housing.

ENGINE HEAD

The engine head provide seals between two working chambers. Intake ports & exhaust ports are operated by valves from overhead cam shafts. Oscillations generated, due to thermal cycle with this arrangement conveyed to the oscillations converter coupled by the oscillating shaft.
