Hand held Coconut Kernel Scraper

{Patent 9313SL}

Coconut scraper devices are readily available on the market, both in portable and stationary table-top formats for food preparation. However, these machines are often heavy and impractical for personal, everyday use. The handheld electric coconut scraper introduced here is an essential kitchen appliance, designed to make your cooking experience easier and more efficient.

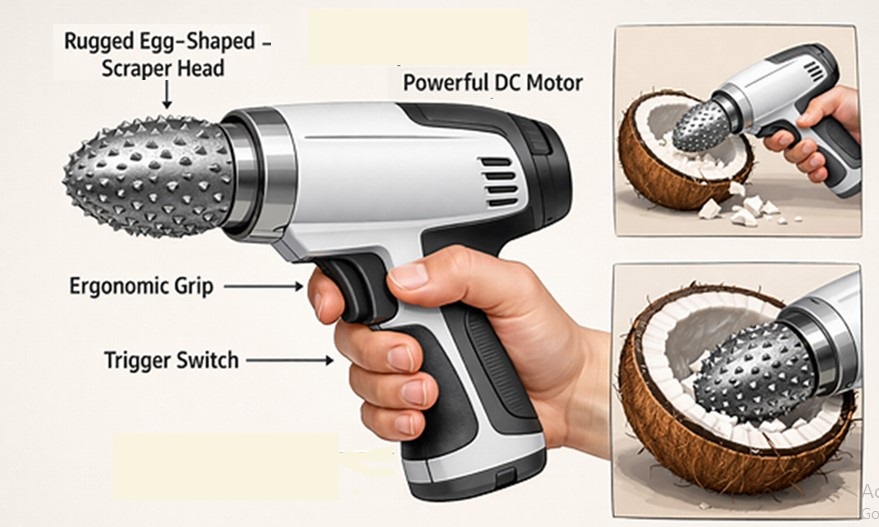

Because this coconut scraper is handheld, its motor is lightweight, safe, and ergonomically designed, yet still delivers enough torque to efficiently scrape coconut kernel-unlike bulkier, table-mounted alternatives. The handheld scraper features a pistol-style grip and a direct-drive, egg-shaped tool head. Its design prioritizes compactness, safety, and controllable torque over sheer power.

Handheld vs. Table-Mounted Coconut Scrapers

Handheld electric coconut scrapers represent a major shift in kitchen appliance design. They prioritize portability and user control over raw power. Key Specification DifferencesDesign Style: Table-mounted units are bulky boxes. Handheld units use a pistol-style grip.

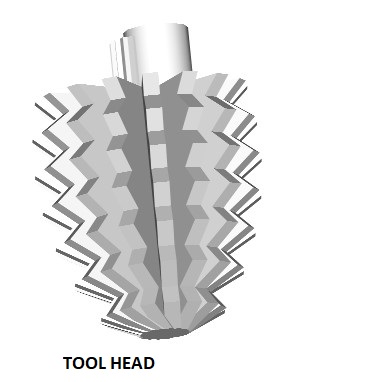

Tool Head: Table units use exposed metal blades. Handheld units use a safer, egg-shaped direct-drive head.

Motor Priority: Table units rely on high power. Handheld units focus on high torque, low weight, and safety.

Usability: Table units stay stationary on counters. Handheld units are light and ergonomically manageable.Technical Challenges in Handheld DesignDesigning a handheld scraper requires balancing user safety with performance:

Torque vs. Weight: The motor is light enough to hold, yet strong enough to scrape tough coconut kernel.

Speed Control: Lower speeds prevent the tool from slipping out of the user's hand.

Vibration Dampening: The pistol grip absorbs motor vibrations to prevent hand fatigue.

Safety Isolation: Handheld use increases proximity to moving parts, requiring better protective shielding.

---

Why Pistol-Type Design with DC Power Works:

A pistol-type grip combined with controlled DC power provides the optimal balance of safety, torque, and ergonomics for a handheld coconut scraper.

Benefits of the Pistol-Type GripNatural Alignment: The wrist remains straight, aligning the forearm directly with the scraping force.

Pushing Leverage: Users can easily apply forward pressure using larger arm muscles instead of strained wrist joints.

Index Finger Trigger: Allows immediate, intuitive power cutoff the moment the user relaxes their grip.

Balanced Center of Gravity: Placing the motor directly above or slightly in front of the hand reduces wrist drooping.

Advantages of Controlled DC Power

High Low-End Torque: DC motors deliver maximum twisting power at low speeds, crucial for carving out tough coconut meat.

Variable Speed Control: Users can slow down the tool near the hard outer shell to prevent slipping and injury.

Lightweight Efficiency: Permanent magnet DC motors pack high power into a small, lightweight frame.

Electrical Safety: Low-voltage DC eliminates the risk of severe electrical shocks in wet kitchen environments.

Battery Portability: Enables cordless operation, removing tangled power cords from the active cooking area.

Scraper tool is a Sub-hemispherical rotary tool





AC-to-DC Live Supply Line Architecture

Powering the pistol-style handheld scraper directly from a wall outlet removes battery weight and ensures constant, unlimited runtime. To keep the device safe, lightweight, and high-torque, the system converts the live AC supply into controlled low-voltage DC before it reaches the handle.

Optimized Power System implement the live line supply in two ways: External Wall Adapter (Recommended): An external power brick (like a laptop charger) converts AC to low-voltage DC at the wall. Only safe, low-voltage DC travels through the power cord to your hand.Internal SMPS (Switched-Mode Power Supply): The AC line runs directly into the handle, is the other option, where a miniature internal circuit board converts it to DC. This eliminates the external brick but adds weight and insulation requirements to the grip.

Key Advantages of Live Supply Line:

Uncompromising Weight Reduction: Eliminating the heavy battery pack keeps the pistol grip extremely light and ergonomically comfortable for extended use. Consistent Torque Output: Unlike batteries that lose power as they drain, a live supply delivers a constant, peak voltage for steady scraping performance. Zero Downtime: The appliance is always ready to use, completely avoiding the frustration of dead batteries during meal preparation. Extended Product Lifespan: The device will not become obsolete or useless when a chemical battery naturally degrades and dies after a few years.

Safety and Control MechanismsDouble Insulation (Class II): The plastic pistol housing protects the user from internal electrical components without needing a ground wire.Moisture Sealing (IPX4 Minimum): The power entry point and the variable speed trigger switch ls tightly sealed with silicone gaskets to block water and sticky coconut water.

Strain Relief Boot: A thick rubber sleeve at the base of the handle prevents the live power cord from fraying, twisting, or snapping during vigorous scraping movement

This electric coconut scraper is having a solid, highly efficient design concept. Simplifying the mechanism of the appliance is durable, lightweight, and cost-effective to produce.
